Where Is Carburetor On Riding Lawn Mower

(Last Updated On: June 25, 2022)

Most riding lawn mowers have the carburetor located under the engine cover, behind the air filter. On some lawn mowers, the carburetor is located behind the fuel tank. To clean the carburetor, you will need to remove the engine cover.

If you’re having trouble finding the carburetor on your riding lawn mower, don’t worry – you’re not alone. Many people have trouble locating this important component, especially if they’re not familiar with the engine of a lawn mower. The carburetor is usually located near the top of the engine, on the side opposite the air filter.

In some cases, it may be located underneath the engine. Once you’ve found the carburetor, you can clean it and make any necessary adjustments.

How-To fix a FLOODING Carburetor on YOUR riding lawn mower/ lawn tractor.

How to clean a carburetor on a riding lawn mower

If your riding lawn mower isn’t starting as easily as it used to, or if it’s running rough, it might be time to clean the carburetor. A dirty carburetor can cause all sorts of problems, from a lawn mower that won’t start at all, to one that stalls frequently, or runs rough. Fortunately, cleaning a carburetor is a pretty simple task that you can do yourself, and it doesn’t take long.

In this article, we’ll show you how to clean a carburetor on a riding lawn mower, step by step. So let’s get started! The first step is to disconnect the spark plug wire from the spark plug.

This will prevent the engine from accidentally starting while you’re working on it. Next, remove the air filter cover, and take out the air filter. Set these aside somewhere safe where they won’t get lost or damaged.

Now it’s time to remove the carburetor. On most riding lawn mowers, the carburetor is located underneath the fuel tank, and is held in place by two or three screws. Remove these screws, and carefully lift the carburetor out of its housing.

Once the carburetor is removed, you can start cleaning it. The best way to clean a carburetor is with a can of carburetor cleaner, which you can get at most auto parts stores.

Lawn mower carburetor problems

If your lawn mower isn’t starting, the problem may be with the carburetor. Carburetor problems are some of the most common issues with small engines, and they can be frustrating to deal with. Fortunately, there are some simple things you can do to troubleshoot the problem and get your mower running again.

See Also  Are Cub Cadet Zero Turn Mowers Any Good


One of the most common carburetor problems is that the carburetor is getting dirty. Over time, the carburetor can become clogged with dirt, dust, and other debris. This can restrict the flow of air and fuel, causing the engine to run poorly or not at all.

To clean the carburetor, you’ll need to remove it from the engine. This is usually a simple process, but you’ll need to consult your owner’s manual for specific instructions. Once you have the carburetor removed, you can clean it with a carburetor cleaner or a can of compressed air.

Be sure to clean all of the nooks and crannies, and pay special attention to the jets. If cleaning the carburetor doesn’t fix the problem, the next step is to adjust the carburetor settings. This is a bit more complicated, and you may need to consult a professional if you’re not comfortable making the adjustment yourself.

The most common adjustment is the air/fuel mixture screw. This screw regulates the amount of air and fuel that enters the engine.

Where is the carburetor on a motorcycle

On a motorcycle, the carburetor is typically located between the engine and the air filter. It is responsible for mixing air and fuel in the proper ratio and delivering it to the engine. The carburetor has a float bowl that supplies fuel to the engine and an idle circuit that keeps the engine running when it is idling.

Craftsman riding lawn mower carburetor diagram

Craftsman riding lawn mowers are equipped with a carburetor that helps supply the engine with the right mixture of fuel and air. Over time, the carburetor can become clogged or damaged, which can cause the engine to run poorly or even stall. If you’re having trouble with your Craftsman riding lawn mower, one of the first things you should check is the carburetor.

To help you troubleshoot the issue, we’ve put together this detailed diagram of the Craftsman riding lawn mower carburetor. As you can see from the diagram, the carburetor is made up of several different parts, including the float bowl, fuel inlet, and float valve. The float bowl is where the fuel is stored, and the float valve helps regulate the level of fuel in the bowl.

The fuel inlet is where fuel enters the carburetor from the gas tank.

See Also  Best Electric Lawn Mower Under 200 - Review And Guide
If the carburetor is clogged, it can cause the engine to run poorly or even stall. To clean the carburetor, you’ll need to remove it from the engine and disassemble it.

Once you’ve cleaned all the parts, you can reassemble the carburetor and reinstall it on the engine. If the carburetor is damaged, you’ll need to replace it. You can find replacement carburetors at most auto parts stores or online.

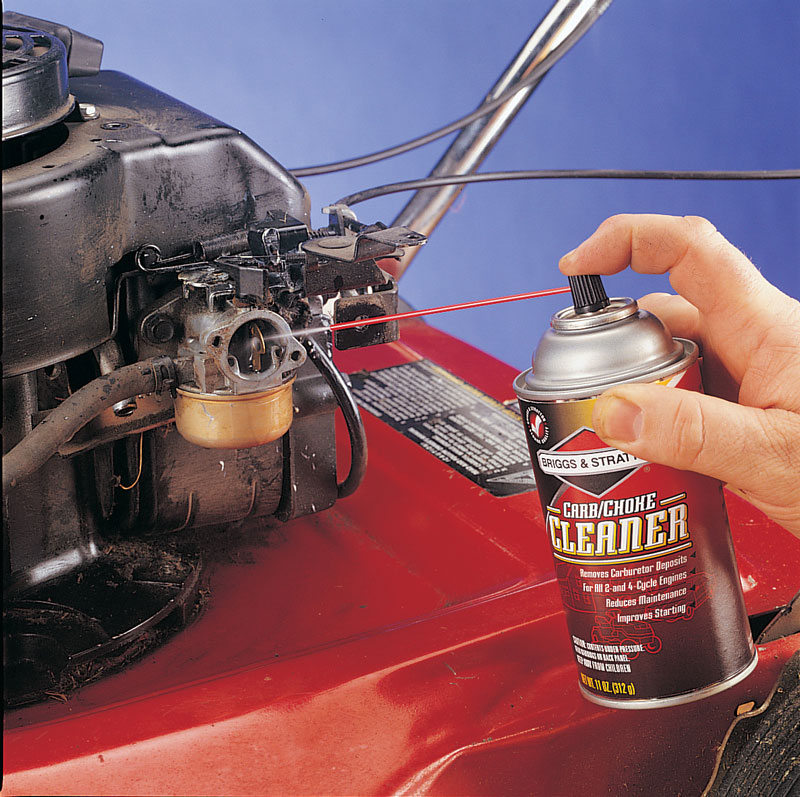

where is carburetor on riding lawn mower

Credit: www.briggsandstratton.com

Where is a lawn mower carburetor located?

A lawn mower carburetor is typically located underneath the engine cover, near the spark plug. It may be difficult to see, but you should be able to find it by following the fuel line from the gas tank. The carburetor is responsible for mixing the fuel and air in the engine, so that the engine will run properly.

If the carburetor is not working properly, the engine will not run smoothly and may eventually stall.

How do you clean a lawn mower carburetor without removing it?

If your lawn mower is having trouble starting, it may be time to clean the carburetor. This is a fairly simple task that you can do without removing the carburetor from the lawn mower. To clean the carburetor, you will need:

-A can of carburetor cleaner -A small brush -A rag

-A screwdriver First, locate the carburetor on your lawn mower. It will be a small metal box with a fuel line running into it.

Next, disconnect the fuel line from the carburetor. Then, remove the air filter so that you can access the carburetor. Spray the carburetor liberally with carburetor cleaner.

Be sure to get all of the nooks and crannies. Let the carburetor cleaner sit for a few minutes, then use the brush to scrub away any built up grime. Finally, wipe down the carburetor with the rag and reassemble the lawn mower.

If your lawn mower still isn’t starting after cleaning the carburetor, you may need to take it to a mechanic for further diagnosis.

See Also  10 Cheapest Lawn Mower Battery - Review And Guide

How do you clean a carburetor on a riding lawn mower?

Assuming you are talking about a standard Briggs and Stratton carburetor, the process is as follows: 1. Disconnect the spark plug wire from the spark plug. 2. Remove the air filter cover and the air filter.

3. Use a carburetor cleaning kit to clean the carburetor. Be sure to follow the instructions that come with the kit. 4. Reassemble the carburetor and the air filter.

5. Reconnect the spark plug wire to the spark plug.

How do I know if my riding lawn mower carburetor is bad?

If your riding lawn mower isn’t starting, or if it’s running rough, the carburetor may be the problem. Here’s how to tell if your carburetor is bad, and what you can do to fix it. First, check for any obvious signs of damage to the carburetor.

If it’s cracked, leaking, or otherwise damaged, it will need to be replaced. If the carburetor looks OK, the next step is to check for clogs. Remove the air filter and check for any dirt or debris that may be blocking the carburetor.

If you find anything, clean it out and try again. If the carburetor is still not working, it’s likely that the float is stuck. This can happen if the carburetor gets gummed up with old fuel.

To fix this, you’ll need to disassemble the carburetor and clean the float. If all else fails, you may need to replace the carburetor. This is usually a last resort, as carburetors are not very expensive.

However, if your carburetor is truly shot, it’s the only way to get your lawn mower running again.

Conclusion

If you’re having trouble finding the carburetor on your riding lawn mower, don’t worry – you’re not alone. Many people have trouble finding this part of the lawn mower, but it’s actually not too difficult once you know where to look. The carburetor is located under the engine cover, and it’s usually a silver or black color.

Once you’ve found it, you can clean it with a carburetor cleaner and make sure that it’s working properly.
